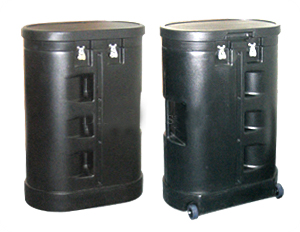

PLACEMENT OF CONTENTS IN CASE |
 |
Contents of Case:
Frame
Channel Bars in Bag
Panels
Endcaps
Halogen Light(s) (In lid or in Case)
|
When stored ,panels must be rolled with fabric/print outside. |
|
(1) Unpack contents of the case as you need them.
Remove frame from case and place on a clean, level surface.

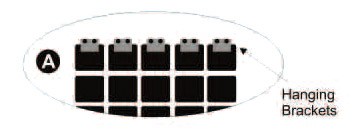

(2) Position frame in front of you with hanging brackets as the top. And facing you.
(A) |
|
|

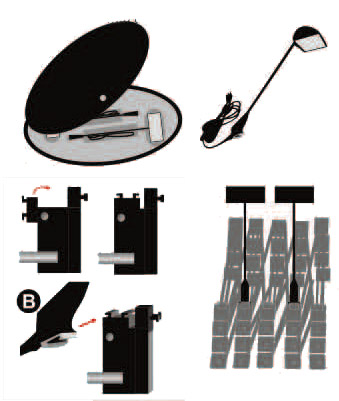

(3) Remove Cover to reveal light(s) in lid (for displays without light Storage in lid, remove light(s)from box in case ). (B)
(4) With frames still collapsed, flip up the bracket on the top node and slide light(s) onto mounting brackets. |
|

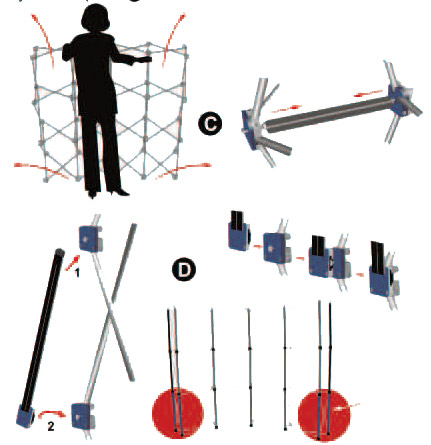

(5) Expanding the frame by pulling up and out . the spring will contract.(C)
(6) Starting at the top, attach channel bars to each node by first inserting the pointed end and then snapping the lock system into place.(D)
|
 |

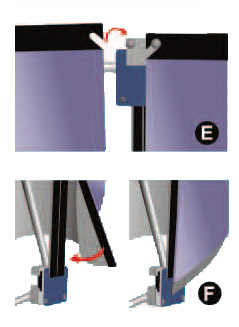

(7) Panels and endcaps are marked on the back ,Beginning with the center panels and working outward, hook each panels over the pegs on the hanging brackets.(E)
(8) Starting at the top, smooth each panels down. Ensure that the magnetic strips are properly aligned.(F)

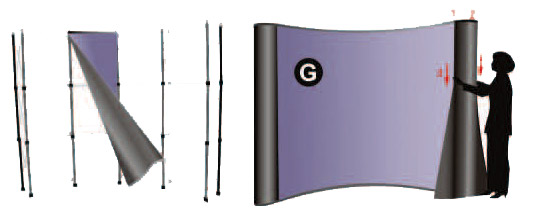

(9) To install endcaps, (1)attach the front hook at top (2) Wrap the endcap around the side and attach real hook at top (3) Smooth both sides downwards at once ,aligning magnetic strips.(G)
|
DISASSEMBLING & REPACKING
|
 |
(1) Detach panels and endcaps by starting at the bottom and peeling upwards, the unhook ,Place in the case one at the time rolled with fabric/print side out.

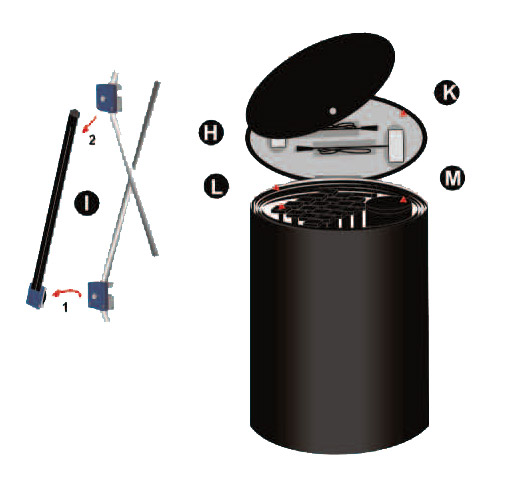

(2)Starting at the bottom, remove channel bars(1) and store in bag. Set side.
(3)To Collapse frame, stand in the middle of the display. Pull the front and back sides apart as Shown. the springs will expand and the display will collapse.(J)
(4)Unhook light(s) from frame . ?Place in lid and attach cover. (K)(For display without light storage in the lid. Place lights in provided box and place in last.)
(5)Place frame in case as shown.(L)
(6)Place bag with channel bars in case as shown.(M)
|
|
|
 |
 |
|
|
 |
 |
 |
 |
 |
|
|
|
